9" Ford Diamond Axle housing
Will Fit the 10" diff ring gears, grinding for the ring through the housing flange may be needed
3.5" 3/8"(.375') wall DOM tubing
Minimum 66" end to end

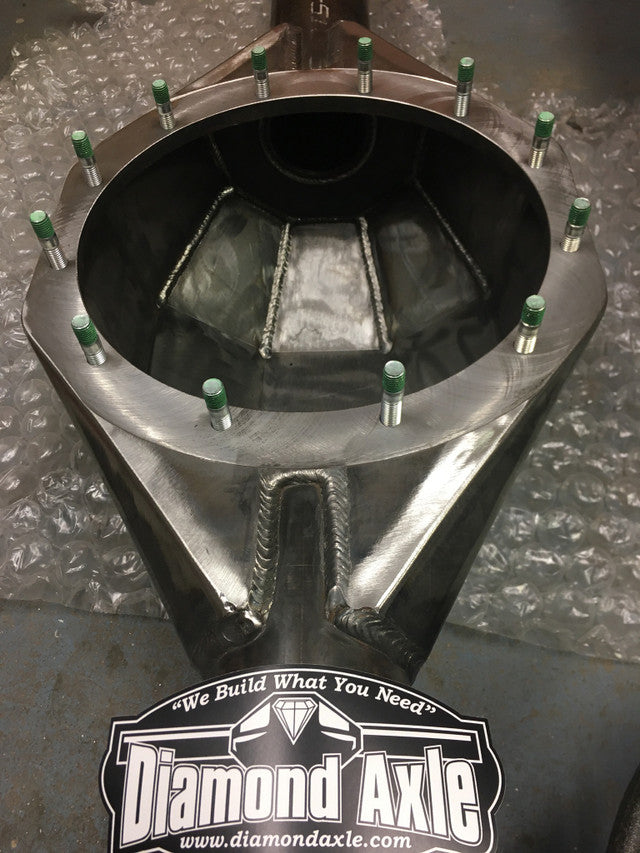

1/4" thick, one piece shell/cover, welded inside and out!

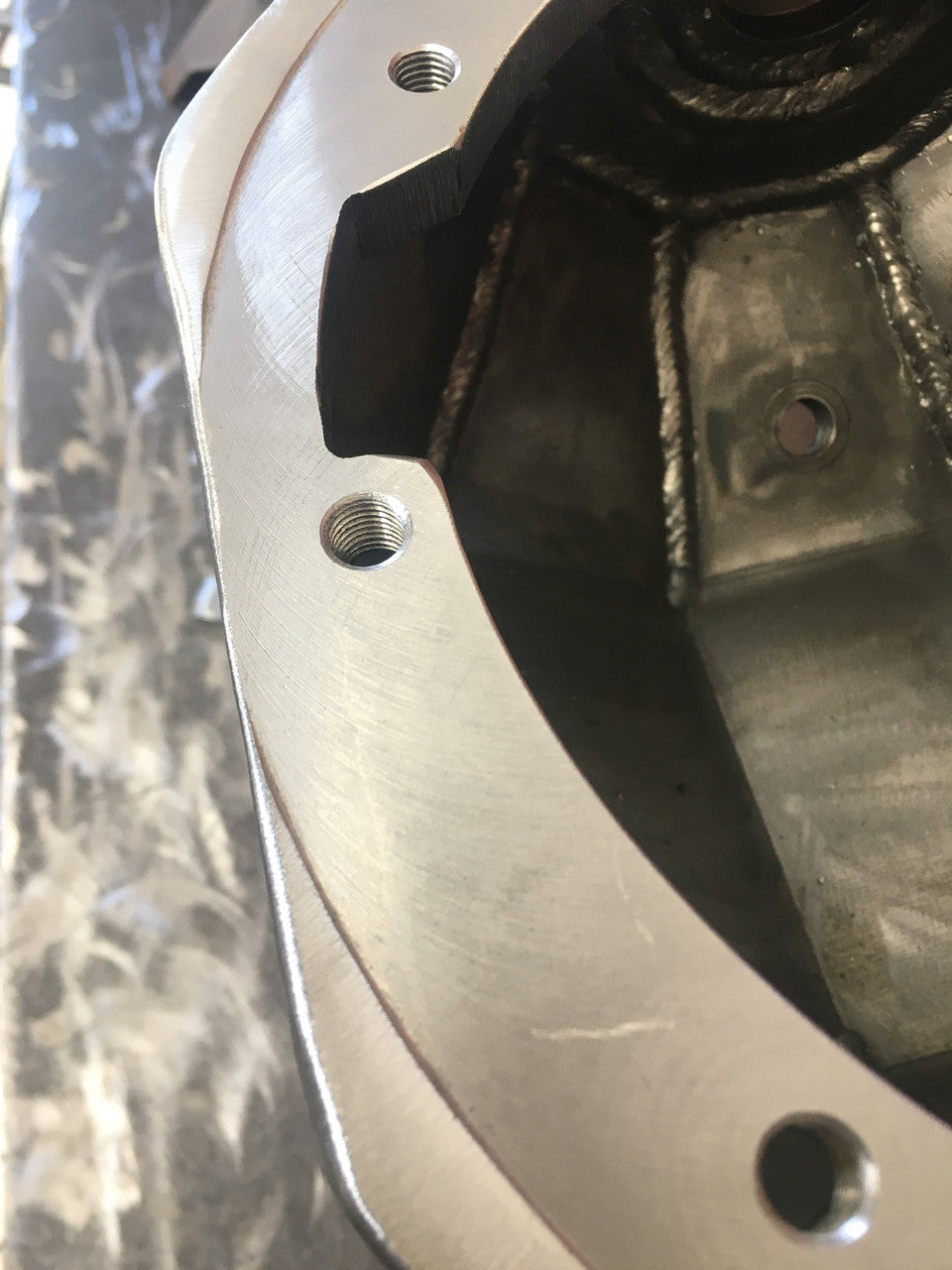

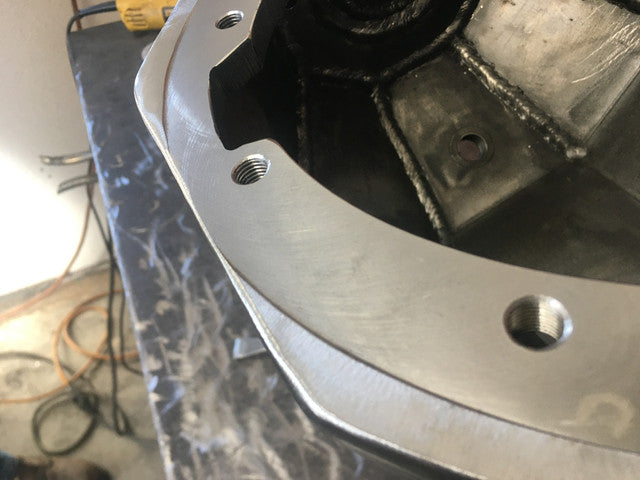

3/8" thick diff mounting flange

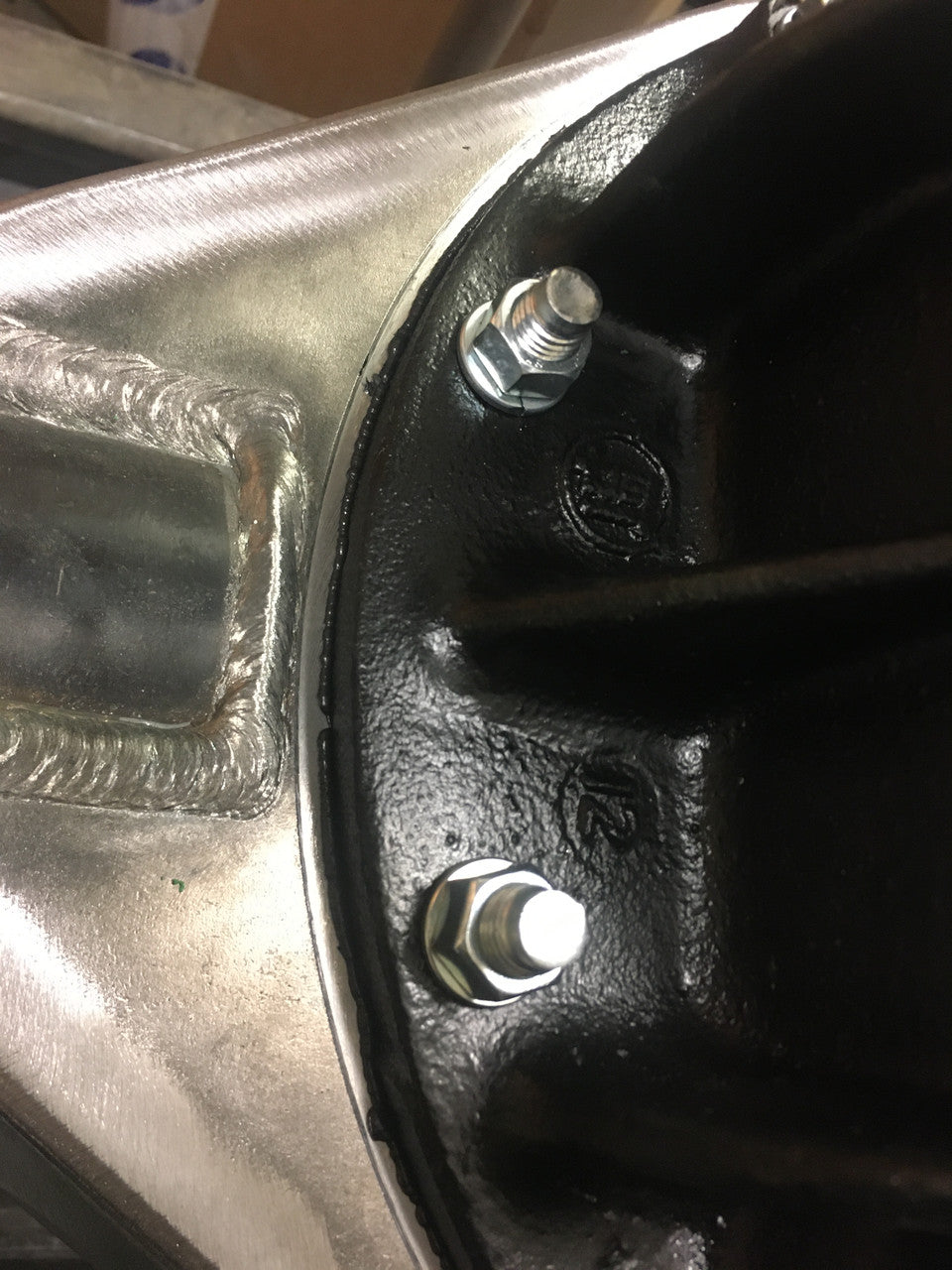

Uses OEM style studs for 8, 3rd member fasteners, and 2, 3/8" bolts, one top, and one bottom. These 3/8" bolts also act as a axle drain
Ready for fabricators to install any different ends on. Toyota knuckle balls, Dana 44, 60 knuckles, Full Float flanges, semi float ends, Portals, etc!
