Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines

Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines

$512.35
$512.35 $512.35
Skip to product information
Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines
  • Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines
  • Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines
  • Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines
  • Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines
Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines

Comp Cams Drag Race, 296BR-6  Excellent Torque in 11:1 Engines

$512.35
$512.35 $512.35
Universal fit — confirm before install

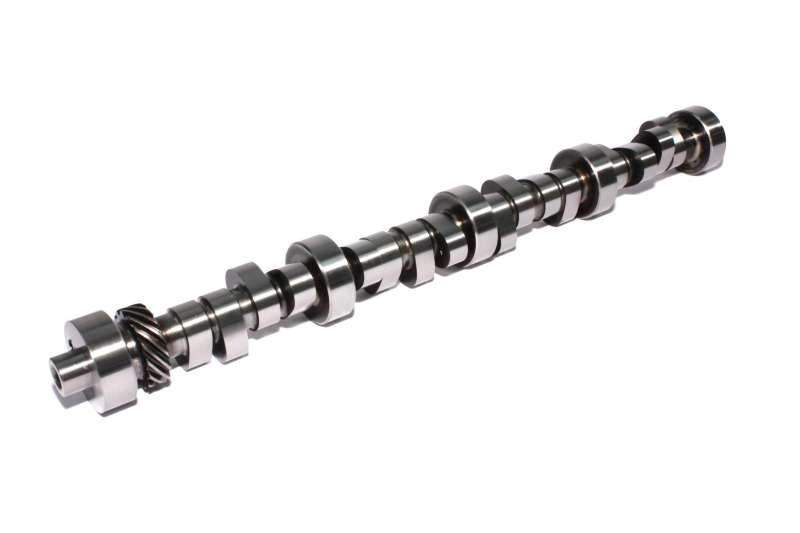

Drag Race, 296BR-6
Excellent Torque in 11:1 Engines

  • Lifter Type: Solid Roller Lifter
  • Engine Family:Ford 289-302 C.I. 8 cyl. 1963-1995
  • Description: Mechanical Roller-Excellent torque in 11:1 engines with 4000 stall.
  • Cam Family: DRAG RACE Mechanical Roller Camshafts

Specification:

  • RPM Range: 4200 to 7200
  • Valve Timing: 0.015
  • Lobe Separation: 106°
  • Intake Centerline: 106°
  • Valve Lash: 0.026 Intake/ 0.028 Exhaust
  • Duration: 296 Intake/ 304 Exhaust
  • Duration @ .050" Lift: 260 Intake/ 268 Exhaust
  • Valve Lift: 0.672 Intake/ 0.672 Exhaust
  • Lobe Lift: 0.421 Intake/ 0.421 Exhaust
