Weld together DIY Off Road Overland Trailer KIT

Description

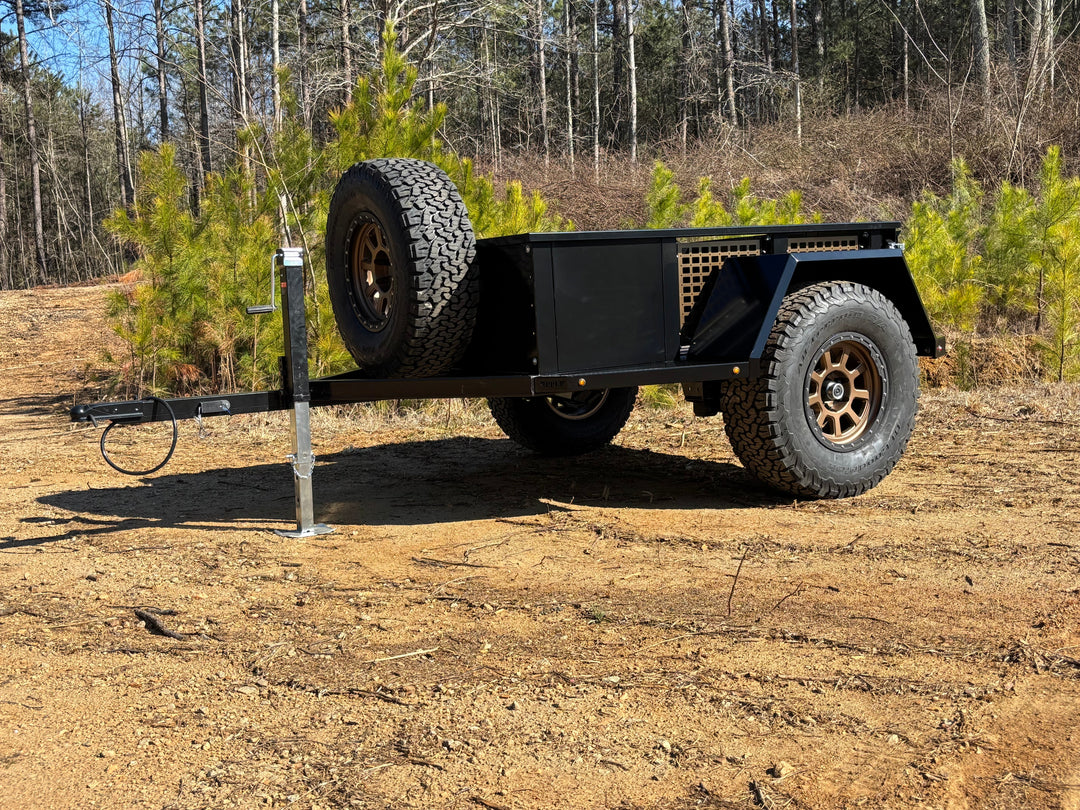

First of it’s kind DIY Off Road Trailer Kit for the off road enthusiast that enjoys building those awesome garage masterpieces. This kit consist of laser cut heavy gauge steel that has tabs and slots designed into the parts for an accurate welded assembly. The details are up to you, leaving endless possibilities for customization.

This trailer kit is designed to match the size of a Tacoma bed (52.5in x 73.5in) so that it is compatible with the truck accessories. We will also be working on creating add-on accessories to make this trailer even more capable.

AXLES ARE NOT INCLUDED WITH THE KIT.

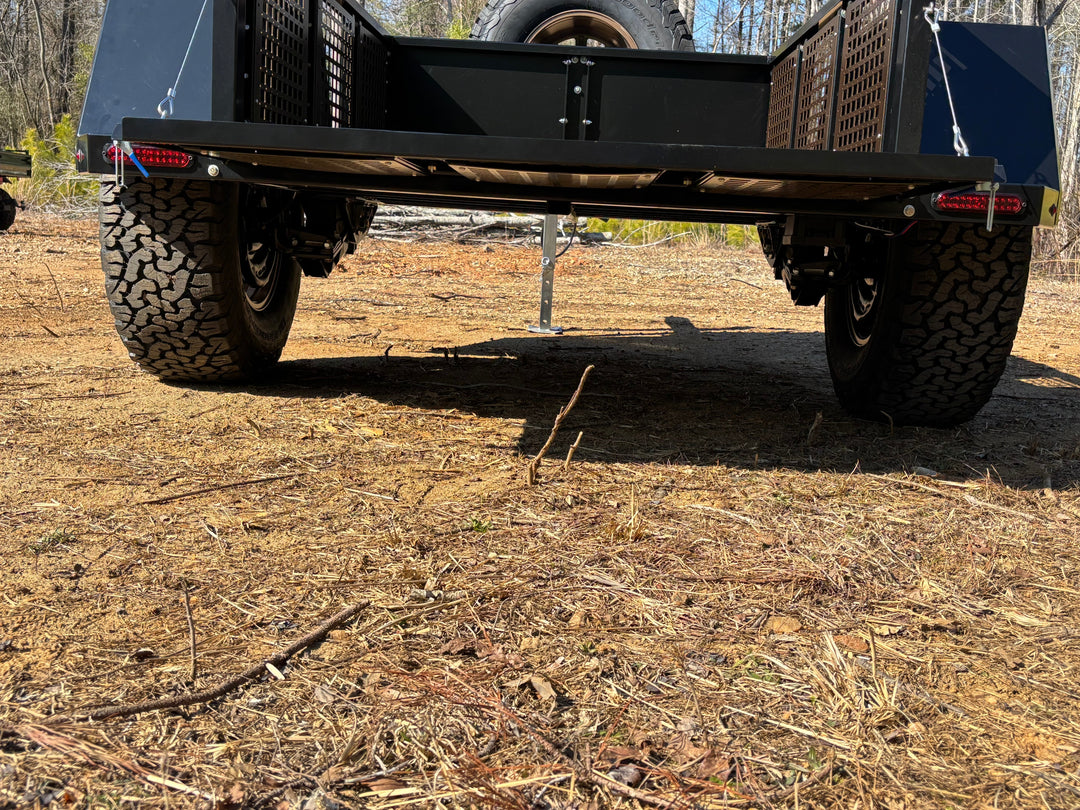

We designed this around the Timbren Axle-Less Trailer Suspensions (PN # ASR35HDS01) for the best ground clearance. The hole locations are laser cut into the tubing for mounting these particular shocks. If you are planning on using this axle-less setup we do offer an optional beef up bracket kit as well.

However, this trailer can be built with other axles options of your choice. This will require customer measuring and modifications based on your axle and what works best for you.

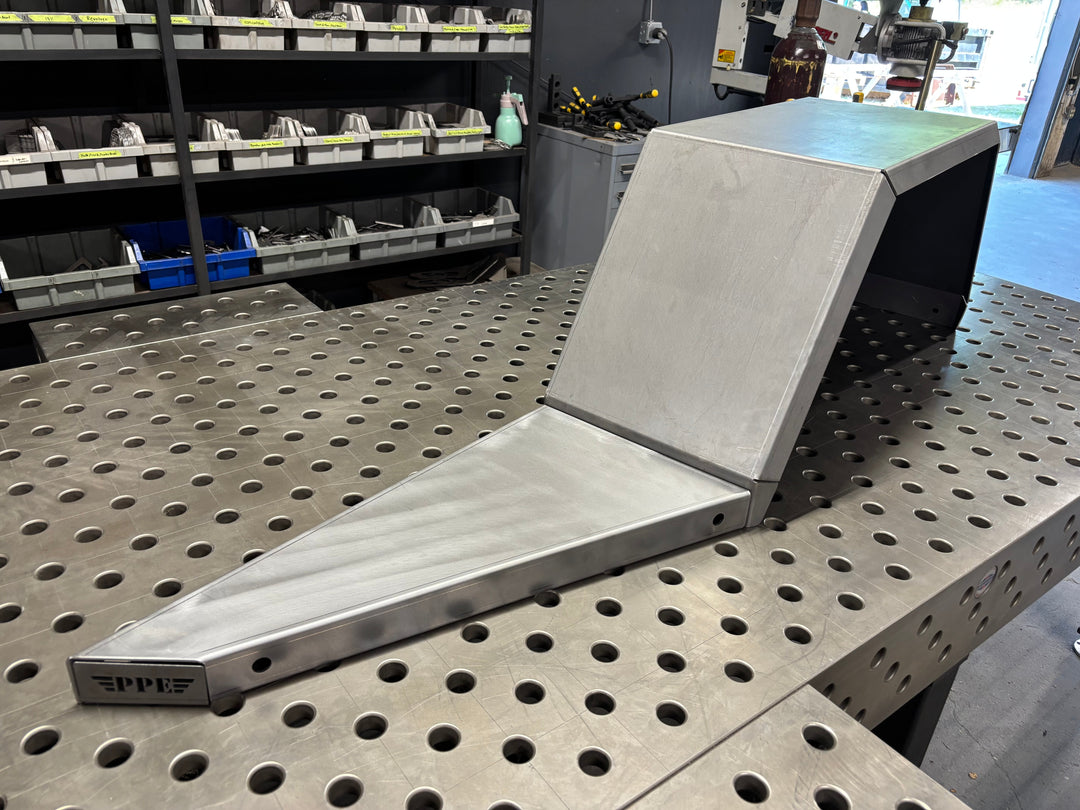

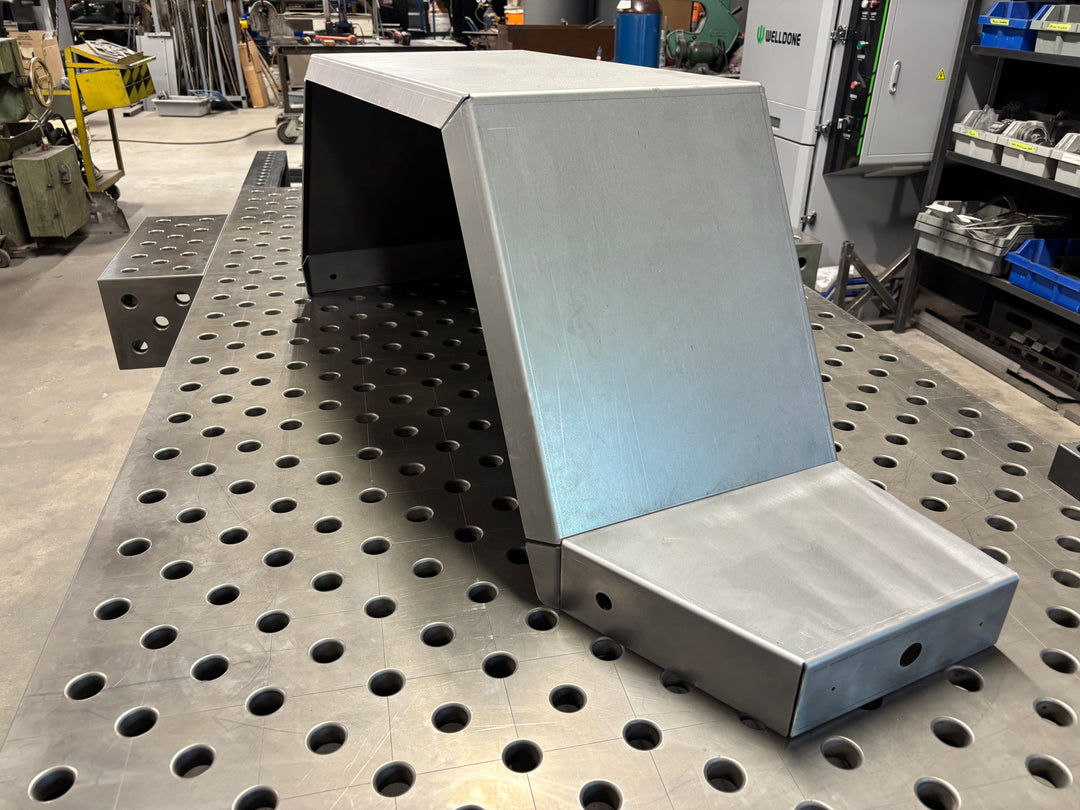

The oversized heavy duty fenders are built to fit 30- 40in tires.
Note: 40in tires will need 2in spindle lift option with the Timbren Axle-less suspension.

This kit only includes the laser cut tubing , steel sheet, and formed metal to complete the basic frame and side rails. You will need to supply your own flooring material as desired (ex: decking boards, sheet metal, expanded metal, etc)

Key Features

• Tacoma-Sized Bed (52.5″ x 73.5″)
  Matches 1st/2nd gen Tacoma bed dimensions, so you can use tons of Tacoma truck accessories (bed racks, tonneau covers, etc.).

• Timbren Axle-Less Ready
  Laser-cut mounting points for the Timbren Axle-Less HD Suspension (PN #ASR35HDS01)—our recommended setup for max ground clearance. Optional beef-up bracket kit available for big-tire abuse.

• Custom Axle Friendly
  Not into Timbren? Run whatever axle you want—just measure, fab, and make it fit.

• Big-Tire Ready
  Oversized HD fenders clear 30–40″ tires. (40s require Timbren’s 2″ spindle lift option).

• Fully Customizable

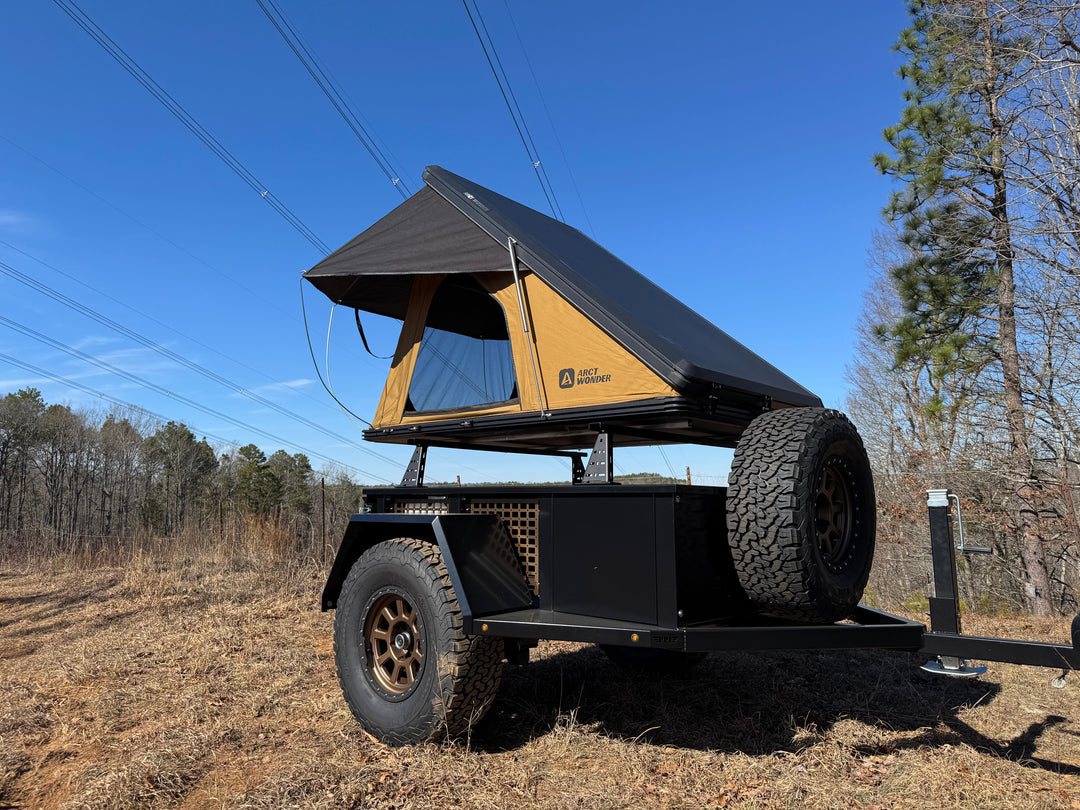

  The kit includes laser-cut tubing, steel sheet, and formed metal to build the frame & side rails. Choose your own flooring (decking, sheet metal, expanded metal, etc.) and finish it however you like. Endless options: RTT mounts, toolboxes, jerry can racks, tailgate add-ons—go wild.

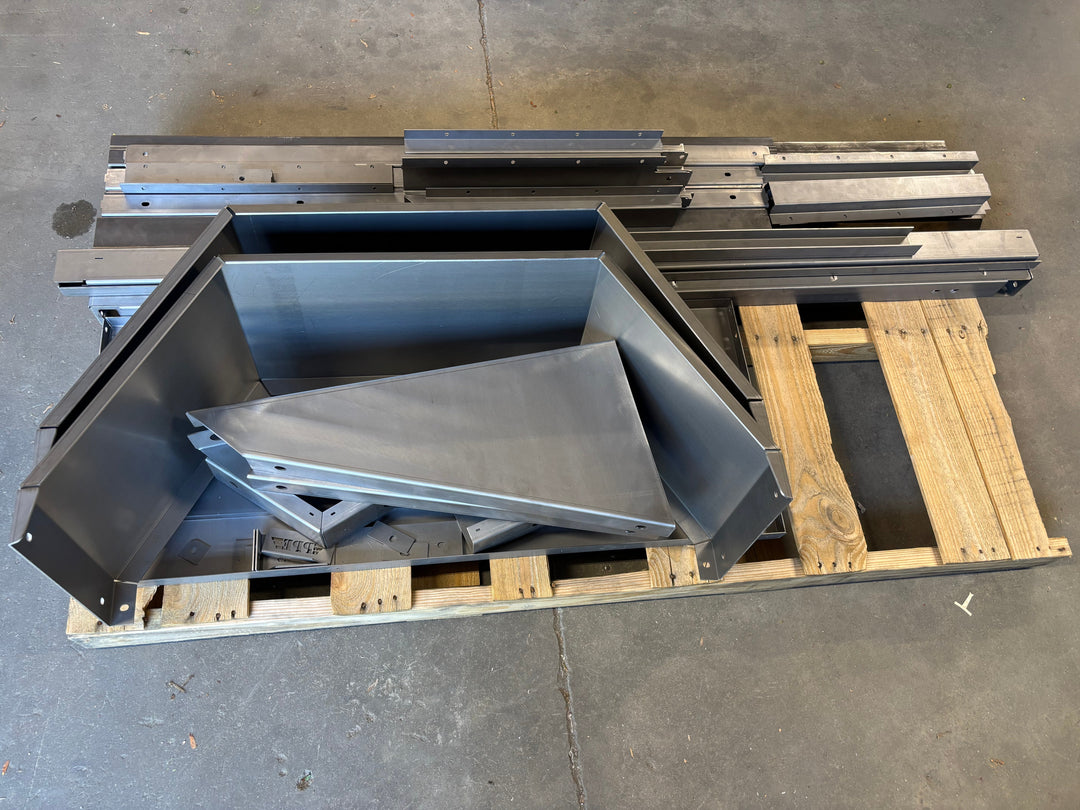

What’s Included

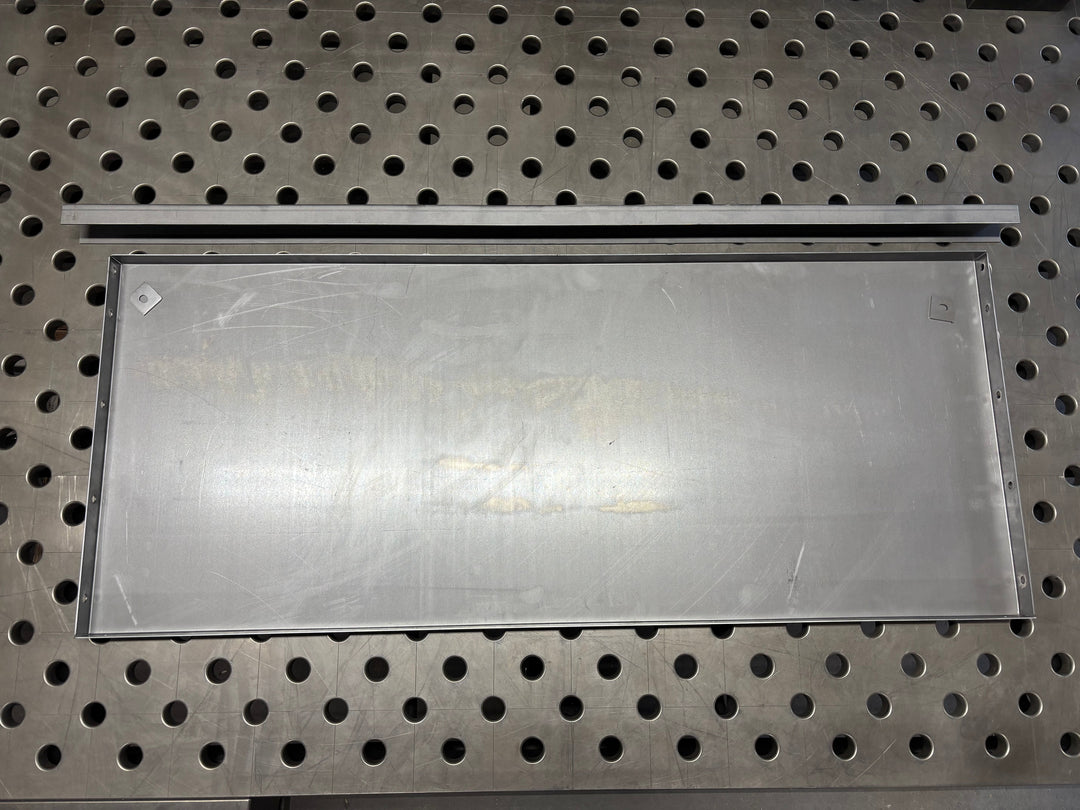

Laser-cut heavy gauge steel – tab-and-slot for perfect fit

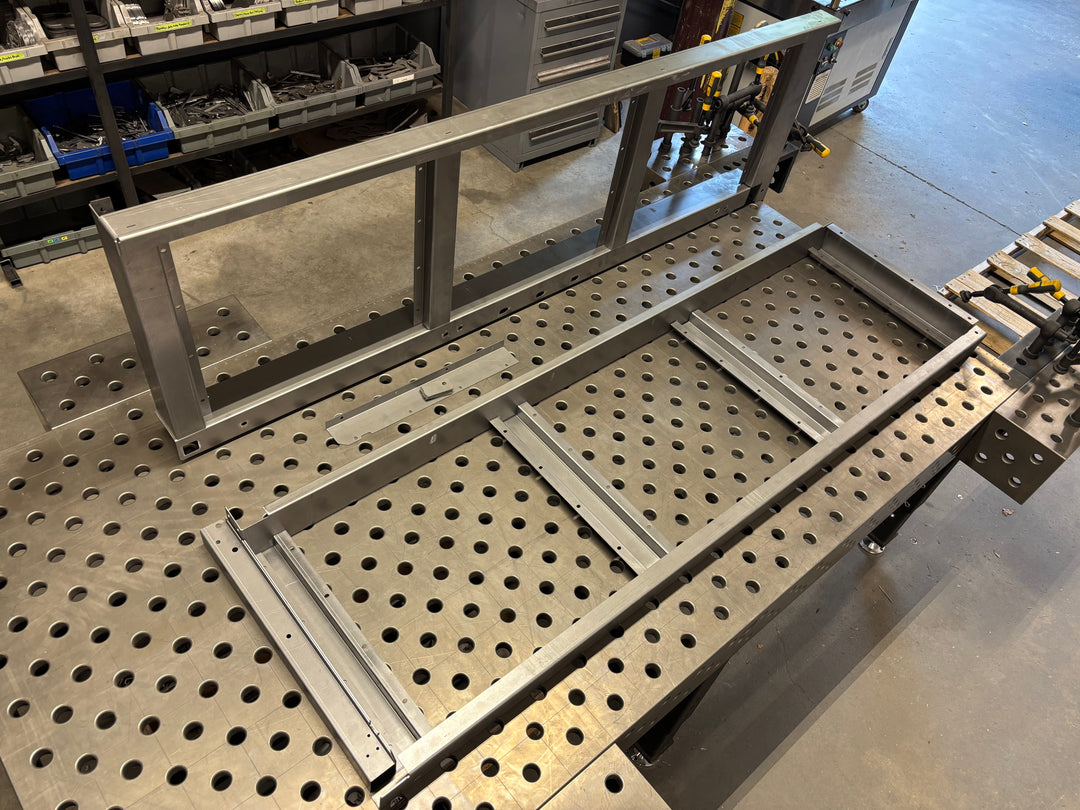

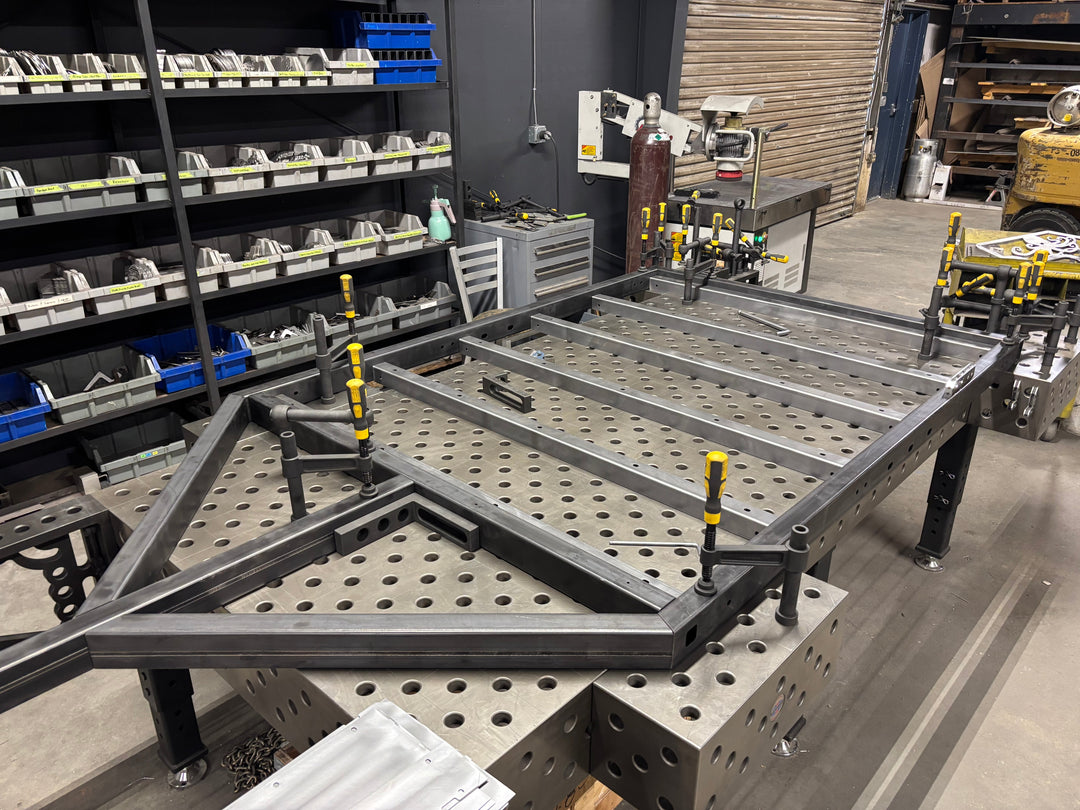

Side rails & frame components
HD formed metal parts (ready to weld)

Not included:
Axles or suspension (designed for Timbren but compatible with others)
Wheels, tires, flooring, or accessories
